pickleball paddle manufacturing

We are a modern factory of 6,000 square meters, equipped with Intelligent manufacturing equipment and internationally leading testing equipment,strong pickleball paddle manufacturing capabilities

explore

consult

Strong

pickleball paddle manufacturing capacity

Experience our comprehensive pickleball paddle manufacturing capabilities, meticulously crafted to meet your unique needs. Our expertise spans OEM/ODM pickleball equipments... Trust us to bring your productions to life.

Equipment

20+ Professional equipments

Design

50+ Engineers & skilled workers

Manufactured

6000 m²+ Modern Factory area

discover more

0 +

Years Experience

0 +

Happy Customers

0 +

Designing Projects

0 ㎡ +

Modern factory

manufacturing Process

How we work

1.Prepare raw materials

The core material of carbon fiber pickleball paddle is T700 or T800 grade carbon fiber prepreg, with resin content typically controlled between 35% and 45%. Depending on the mechanical requirements of different parts of the paddles, different weaving methods of the carbon fiber cloth may be used.

2.Mold Design

Carbon fiber pickleball paddle molds are typically machined from steel molds, with a hard anodizing treatment to ensure high temperature resistance (≤200℃) and wear resistance. The molds require extremely high precision, with tolerances controlled within ±0.05mm.

3.Layup process

A standard carbon fiber pickleball paddle typically has 12-18 layers: 6-8 layers for the face, 4-6 layers for the frame, and 2-4 layers for the handle.The direction of the carbon fiber fabric in each area is not consistent because they serve different functions.

4.Pre-compression treatment

After the layers are laid up, pre-compression is performed by vacuum bag compression or mechanical pre-compression to remove interlayer air and ensure the material is dense. This step is crucial for reducing the porosity of the finished product.

5.Hot pressing curing

The prepared mold is placed in a carbon fiber hot press for high-temperature curing. Typical process parameters are: temperature 130-150℃, pressure 5-10MPa, and time 15-30 minutes. During the hot pressing process, the resin undergoes a cross-linking reaction, forming a stable three-dimensional network structure.

6.Demolding & trimming

After curing, wait for the mold to cool to a safe temperature before demolding. After removing the initial product, use CNC equipment for precise trimming to remove excess material.

7.Surface treatment and coating

After polishing and cleaning, the paddle enter the painting line. First, a primer is sprayed to fill the tiny pores on the surface, then the pattern is designed and the topcoat is sprayed, and finally a protective clear coat is applied.

8.Quality Inspection

Finished products must undergo rigorous physical performance testing, including balance point testing, hardness testing, vibration frequency analysis, and destructive sampling, to ensure that each racket meets design standards.

Quality Control Witnessed Everywhere

How do we focus on further improving product quality control and make efforts to this end.

Raw Material Inspection

Good raw materials are one of the key factors to ensure pickleall paddles and we have been strictly reviewing it,ensure the high quality of materials

Well-vetted Suppliers

Close partnerships with dozens of of reliable material suppliers guarantee constant access to quality materials.We have strict standards

Strict Standard

We hold the ISO 9001:2015 certification, which stands as evidence of our unwavering commitment to quality.

Advanced Facilities

Various testing machines, like tensile machine,and 3D scanners. We know the importance of equipment.

Rigorous Quality System

Our strict commitment to quality control regulations ensures quality is maintained production.

Complete Quality Report

Get comprehensive quality reports from our in-house quality team or third-party labs for every products.

Products

Let's see pickleball paddles we can do

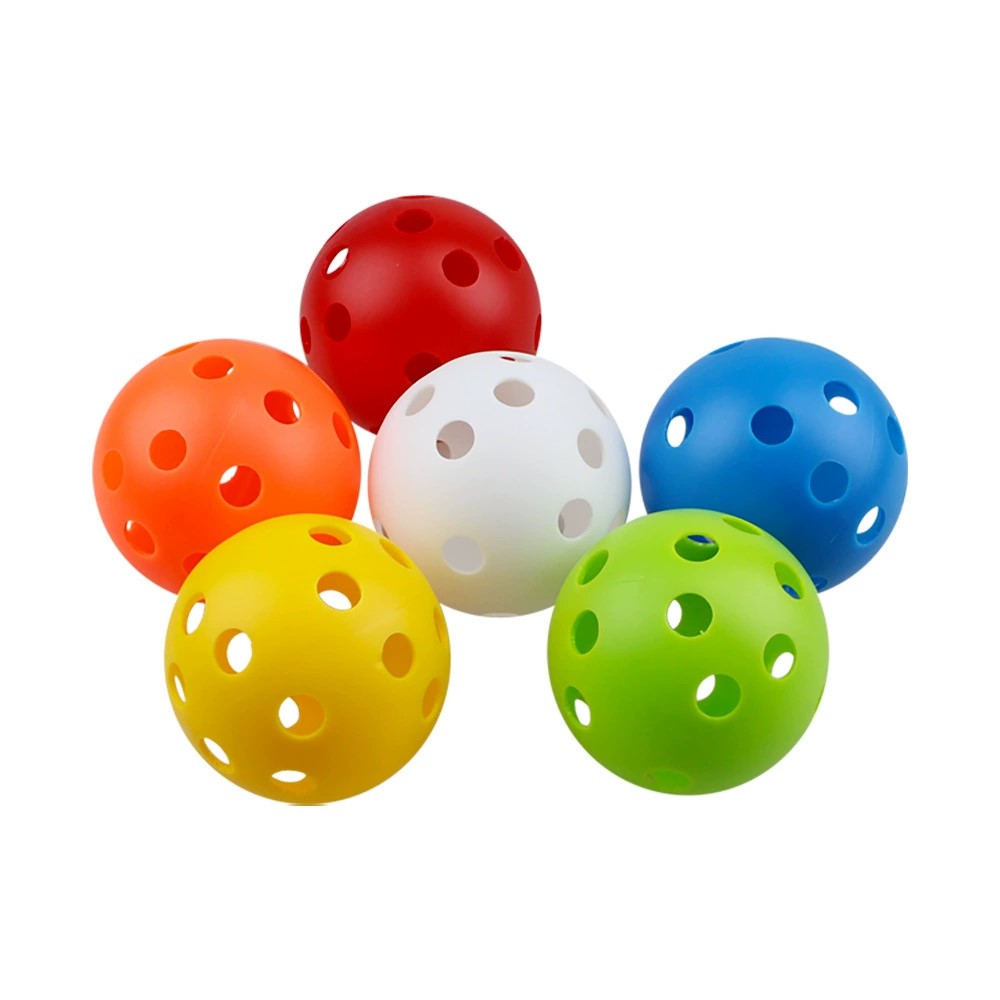

Carbon fiber paddles Glass fiber paddles Pickleball sets Pickleball balls Pickleball nets

Learn POM advantages

We already serve many brands and offer customized pickleball equipments! Learn more matching your brand

Get in touch

As a 10+ years custom pickleball paddle manufacturer, we have a team of skilled engineers ready to support you in your product development journey from prototyping to production.Any ideas about your product you can contact us freely,and our engineers will get back to you with a quote as soon as possible.
